Vertical Lift Module
High-Density Vertical Storage System
Maximise storage capacity using vertical space efficiently.
UB Vertical Lift Module (VLM) delivers high-density vertical storage within a compact footprint, transforming unused height into organised, accessible inventory.
By bringing stored items directly to the access point, VLM shortens retrieval time, improves storage control, and supports efficient warehouse ASRS operations without expanding floor space.
.png)
Storage working better with UB VLM
Ergonomic Access Station
VEXTA VLM delivers every tray at a waist-height opening, eliminating the need for bending or reaching during high-frequency picking shifts.
Goods-to-Person Efficiency
VEXTA VLM does the heavy lifting and searching for you, bringing items directly to your station to reduce travel time across the floor.
Intelligent Height Sensing
The system automatically sensors the height of each tray, ensuring that inventory is stored in the most space-efficient configuration possible.
Atmospheric Asset Protection
The fully enclosed VEXTA unit protects inventory from dust and environmental contaminants, ensuring material integrity is maintained throughout the storage cycle.
Secure Operational Environment
We offer a controlled storage solution that keeps personnel safely at floor level and away from high-traffic forklift and racking zones.
Scalable Inventory Versatility
VEXTA handles a diverse range of components, from small tooling to large bins, providing a flexible platform for various industrial storage requirements.
Built for Storage Performance
Vertical Lift Modules maximise storage density, reduce operator travel, and improve access speed, making them a core ASRS solution for space-constrained warehouses and industrial storage environments.
Vertical Lift Cabinet
The Core of High-Density Storage
20m
Vertical Storage Height
1000kg
Tray Load Capacity
An enclosed cabinet structure that keeps inventory protected, organised, and vertically compact, allowing operators to store more items in less floor space while maintaining clear, structured storage locations.
.png)
Automated Vertical Lift Storage
System-driven storage and retrieval
2 m/s
Vertical Lift Speed
Automated
Tray Delivery
Uses a central extractor to automatically retrieve trays and deliver them to the picking port. Items are presented at a fixed, ergonomic access point, reducing walking, eliminating ladder use, and shortening picking cycles in high-density warehouse storage operations.

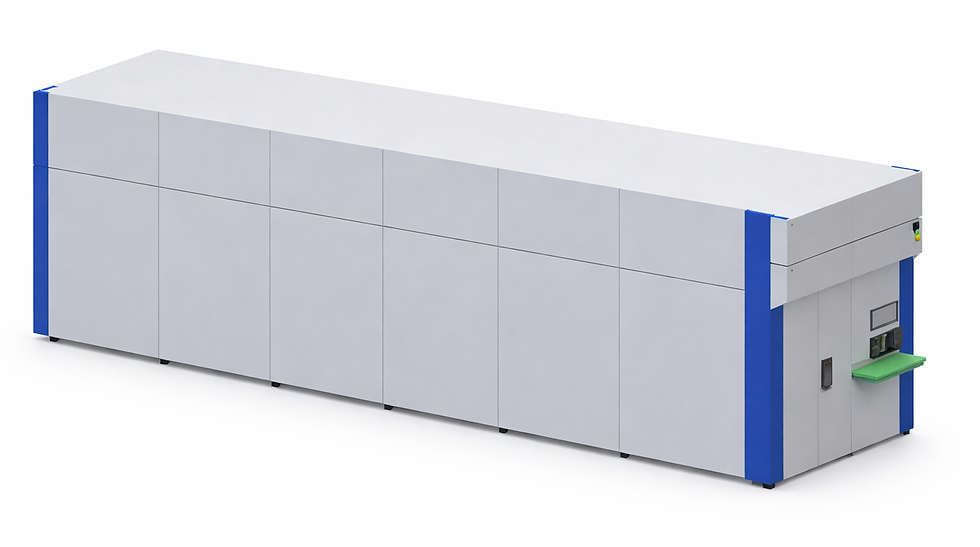

Line-Side Vertical Lift Storage
Point-of-use material access
Near-Line
Direct Access
Compact
Space-Efficient Layout
Applies the same vertical storage principle closer to operational areas, allowing operators to access stored materials quickly by request while maintaining structured, high-density storage within a compact footprint.
.png)
Designed for industrial warehouse environments, the VLM combines industrial controllers with PLC control to deliver stable, durable performance, even in demanding and harsh operating conditions.
Container height
3000-20000mm
Increase in container height
200mm
Height adjustment range of tray
25mm
Storage Window
Up to 3, can pass through multiple floors
Speed performance parameters
250kg & 500kg vertical speed up to 2m/s
750KG vertical speed up to 1.2m/s
The fastest vertical speed of 1000kg is 0.7m/s
