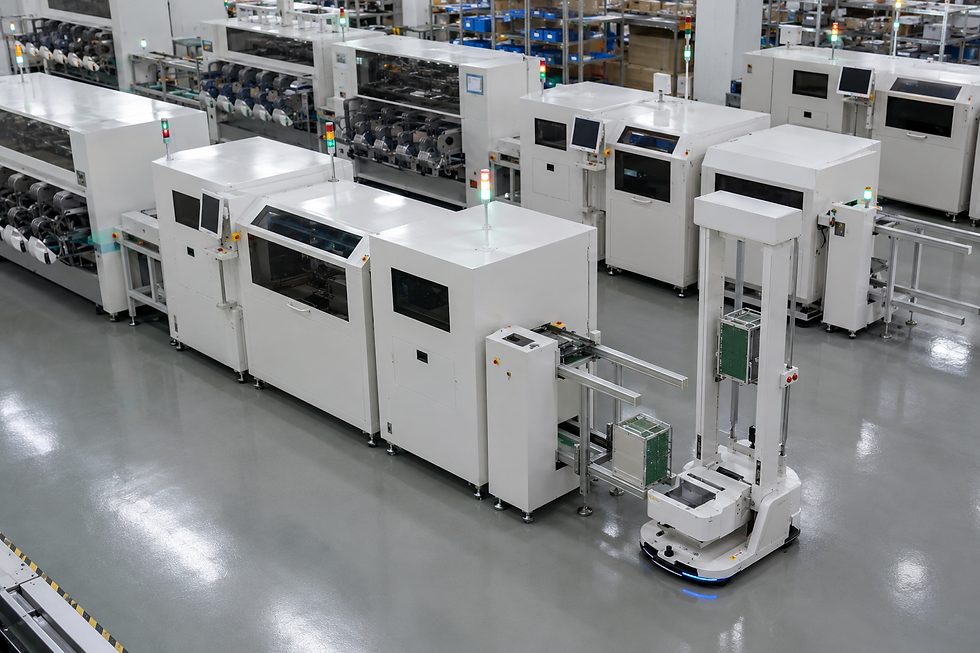

Carton Transfer Unit
Automated Carton Movement, Built for Efficiency
UB Carton Transfer Unit (CTU) automates the movement of cartons, totes, trays, and compatible load carriers across warehouse and manufacturing environments. Designed for flexible integration with storage systems, conveyors, workstations, and control software, it supports efficient material flow, reduces manual handling, and enables more responsive and scalable operations.
Built for Diverse Workflows
Automated Warehouse Carton Replenishment
Automatically transfers cartons between storage locations and operating zones, maintaining stock availability while reducing repetitive travel, manual transport, and unnecessary handling across warehouse operations.
Production Line Material Supply
Delivers components, trays, or cartons to designated production areas, supporting timely line replenishment and more organized material movement across manufacturing floors and process zones.
Order Picking and Fulfillment
Moves required cartons or totes to picking and packing stations, helping operators complete orders efficiently with less walking, searching, lifting, and manual carrying.
Engineered for Performance
01
Flexible Integration
Connects with shelving, conveyors, workstations, and software platforms for coordinated, end-to-end material movement across operations.
02
Versatile Handling
Handles cartons, totes, trays, and compatible carriers across diverse warehouse and manufacturing applications with ease.
03
Stable Transfer
Supports accurate, controlled movement for dependable carton delivery between storage locations and designated operating zones.
04
Safer Operations
Reduces manual transport through obstacle detection, collision avoidance, operational alerts, and emergency stop functions.
Specifications
Dimensions (mm)
1650 x 900 x 3930
Net Weight (kg)
580
Material Type
Tote, carton, tray, carrier, PCB magazine rack, ESD storage drawer, etc.
Load Capacity Per Case (kg)
50
Total Load Capacity (kg)
250
Number of Storage Trays
5
Maximum Picking Height (mm)
3660
Material Dimensions (mm)
600 x 500 x 450
Operating Temperature
0-45°C
Aisle Width (mm)
1000
Movement Speed (m/s)
1.57
Robot Full Charging Time (h)
≤0.84
Robot Working Time After Full Charge (h)
≥6.5
Obstacle Detection
288 slots
Anti-Collision
✓
Audible and Visual Alarm
✓
Emergency Stop Button
✓
Warning Sign
✓
